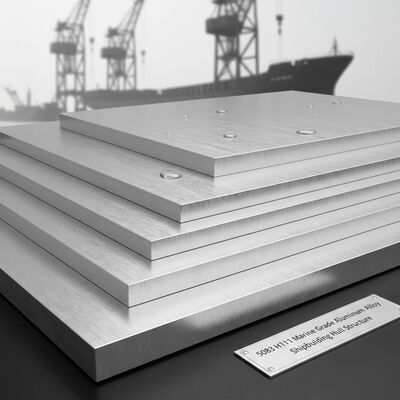

5083 H116 Marine Grade Aluminum Alloy Plate 3mm-200mm Thickness for Shipbuilding Hull Structure Applications
| उत्पत्ति के प्लेस | शेडोंग, चीन |
|---|---|
| ब्रांड नाम | Hongtu |
| प्रमाणन | ISO 9001:2015, SGS, DNV, ABS, BV, LR (upon request) |
| मॉडल संख्या | 5083-एच116 |
| न्यूनतम आदेश मात्रा | 1000 किग्रा |
| मूल्य | USD 3.0-4.5 / kg |
| पैकेजिंग विवरण | एंटी-रस्ट पेपर इंटरलीव्ड, नमी-प्रूफ पीई फिल्म, स्टील स्ट्रैपिंग के साथ एक्सपोर्ट-ग्रेड फ्यूमिगेटेड ल |
| प्रसव के समय | स्टॉक के लिए 5-10 कार्य दिवस, उत्पादन के लिए 15-30 दिन |
| भुगतान शर्तें | टी/टी, एल/सी नजर में |
| आपूर्ति की क्षमता | 2000 टन प्रति माह |
उत्पाद विवरण
| मिश्र धातु | 5083 | गुस्सा | एच116, एच321, एच112, ओ |
|---|---|---|---|
| मोटाई | 3 मिमी - 200 मिमी | चौड़ाई | 1000 मिमी, 1250 मिमी, 1500 मिमी, 2000 मिमी, 2500 मिमी, 3300 मिमी |
| लंबाई | 2000 मिमी, 3000 मिमी, 6000 मिमी, 8000 मिमी, 12000 मिमी या अनुकूलित | मानक | एएसटीएम बी928, एएसटीएम बी209, एन 485, डीएनवी-ओएस-सी401, एमआईएल-डीटीएल-46027 |
| सतही समापन | मिल फ़िनिश, शॉट ब्लास्टेड, प्राइमेड | तन्यता ताकत | ≥ 305 एमपीए (एच116) |
| नम्य होने की क्षमता | ≥ 215 एमपीए (एच116) | बढ़ाव | ≥ 10% (H116) |
| छूटना प्रतिरोध | पास (एएसटीएम जी66/जी67 एसेट) | आवेदन | जहाज के पतवार, अधिरचना, अपतटीय प्लेटफार्म, एलएनजी टैंक, दबाव पोत |
| प्रमुखता देना | 5083 H116 Shipbuilding Aluminum Plate,Marine Hull Structure Alloy 5083,Seawater Resistant 5083 H116 Sheet |
||
उत्पाद विवरण
5083 H116 Marine Grade Aluminum Alloy Plate 3mm-200mm Thickness for Shipbuilding Hull Structure Applications
5083 H116 Marine Grade Aluminum Alloy Plate for Shipbuilding and Offshore Structures
The 5083 H116 aluminum alloy plate is the premier material for marine and offshore applications, engineered to deliver maximum corrosion resistance in aggressive seawater environments. With the highest strength among non-heat-treatable alloys and superior weldability, it is the material of choice for ship hulls, superyacht structures, offshore platforms and cryogenic storage tanks. The H116 temper is specifically designed to resist exfoliation and intergranular corrosion in marine service.
Key Features
- Premium Marine Alloy: 4.0-4.9% magnesium content delivers the highest strength and best corrosion resistance in the 5000 series
- H116 Special Temper: Specifically processed to provide immunity to exfoliation corrosion and intergranular attack in saltwater service
- Classification Society Approved: Certified by DNV, ABS, BV and LR to meet shipbuilding and offshore structure requirements
- Exceptional Weldability: Excellent TIG and MIG welding characteristics with 5356 filler maintaining joint strength and corrosion resistance
- Cryogenic Performance: Retains toughness and ductility at temperatures as low as -196°C for LNG containment systems
- Stress Corrosion Cracking Resistant: Specifically processed grain structure eliminates sensitization to SCC in marine environments
Chemical Composition (Weight %)
| Element | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Al |
|---|---|---|---|---|---|---|---|---|---|
| Min | - | - | - | 0.40 | 4.00 | 0.05 | - | - | Remainder |
| Max | 0.40 | 0.40 | 0.10 | 1.00 | 4.90 | 0.25 | 0.25 | 0.15 |
Mechanical Properties (H116 Temper)
| Property | Value (Thickness ≤ 50mm) |
|---|---|
| Tensile Strength | ≥ 305 MPa |
| Yield Strength | ≥ 215 MPa |
| Elongation | ≥ 10% |
| Hardness (Brinell) | 75 HB |
| Density | 2.66 g/cm³ |
| Exfoliation Corrosion | P (Pass) per ASTM G66 |
| Intergranular Corrosion | ≤ 150 μm mass loss per ASTM G67 |
Available Dimensions
| Parameter | Range |
|---|---|
| Thickness | 3mm - 200mm |
| Width | 1000mm - 3300mm |
| Length | 2000mm - 12000mm or Custom |
| Temper | H116, H321, H112, O |
| Ultrasonic Testing | EN 10160 Class A / ASTM B594 Class AA available |
Applications
- Fast ferry and patrol boat hulls and superstructures
- Luxury yacht and superyacht construction
- Offshore oil and gas platform topside modules
- LNG carrier spherical and membrane tanks
- Naval and coast guard vessel structures
- Cryogenic pressure vessels and heat exchangers
- Subsea and deepwater equipment structures
- Chemical tanker cargo tanks
Our Advantages
- Classification Society Certification: DNV, ABS, BV and LR material certification upon request with full traceability
- Ultrasonic Testing Available: 100% UT inspection per EN 10160 Class A or ASTM B594 Class AA standards
- Intergranular Corrosion Testing: ASTM G67 testing reports provided for each production lot
- Marine Industry Experience: 15+ years supplying aluminum plates to shipyards and offshore fabricators worldwide
- Large Dimensions: Single plates available up to 3300mm width and 12000mm length reducing weld seams
- Dedicated Export Packaging: Fumigated wooden pallets with full moisture protection for ocean freight
Contact our marine aluminum specialists today for a comprehensive quotation on 5083 H116 shipbuilding plates. Technical datasheets, mill certificates and classification society approvals provided with every order.
